Standarization of a SYBR Green-I based real time RT-PCR assay for the detection of equine influenza virus

Estandarización de un ensayo de RT-PCR en tiempo real basado en SYBR Green-I para la detección del virus de la influenza equina


ABSTRACT

Equine influenza is an acute respiratory infection of horses, donkeys, mules and zebras. Nowadays, the reverse transcriptase polymerase chain reaction (RT-PCR) and real-time RT-PCR (rRT-PCR) assays are being widely used in diagnostic laboratories as a more sensitive alternative to virus isolation for the detection of equine influenza virus. The purpose of this study was to standardize an rRT-PCR, based on SYBR Green-I coupled with melting curve analysis for the detection of equine influenza virus (gene M) and the typing of hemagglutinin gene (HA). Sensitivity and specificity of the assay (gene M) were evaluated. In terms of the matrix gene copy number, the detection limit was 4.5 gene copies/μl of in vitro transcribed RNA. The linear range obtained for the transcript in the assay genered a typical standard curve from 107 until 100 gene copies/µl in terms of RNA copy number. The correlation coefficient (R2) was 0.99 for the RNA copies detected in nuclease free water and the error of standard curve was 0.0139. The rRT-PCR assay showed to be specific for equine influenza virus. No specific amplification curves were obtained with any of the other viruses tested such as equine viral arteritis, equine herpesvirus-1 and equine herpesvirus-4. The assay showed amplification and specific melting curves when the second set of primers against HA gene was evaluated. Thus, the proposed SYBR Green-I based rRT-PCR assay for the detection of equine influenza virus can be used in case of a possible emergency of this agent in Cuba.


RESUMEN

La influenza equina es una infección respiratoria aguda de los caballos, burros, mulas y cebras. Actualmente, los ensayos de reverso transcripción acoplados a la reacción en cadena de la polimerasa (RT-PCR) y RT-PCR en tiempo real (rRT-PCR) están siendo ampliamente usados en los laboratorios de diagnóstico, como una alternativa más sensible al aislamiento viral, para la detección del virus de influenza equina. El objetivo de este estudio fue estandarizar un ensayo de rRT-PCR, basado en SYBR Green-I acoplado a análisis de curvas de disociación para la detección del virus de influenza equina (gen M) y la tipificación del gen de la hemaglutinina (HA). Se evaluaron la sensibilidad y la especificidad del ensayo (gen M). En términos de números de copias del gen de la matriz, el límite de detección fue de 4,5 copias del gen/μL del ARN transcripto in vitro. El rango lineal obtenido para el transcripto en el ensayo generó una curva estándar desde 107 hasta 100 copias del gen/µL en término de número de copias de ARN. El coeficiente de correlación (R2) fue de 0,99 para las copias de ARN detectadas en agua libre de nucleasas. El error de la curva estándar fue de 0,0139. El ensayo de rRT-PCR mostró ser específico para el virus de influenza equina. No se obtuvieron curvas de amplificación específicas con los otros virus evaluados, como son arteritis viral equina, herpesvirus equino-1 y herpesvirus equino-4. El ensayo mostró amplificación y curvas de disociación específicas cuando se evaluó la segunda pareja de cebadores contra el gen de la hemaglutinina. Así, el ensayo propuesto de rRT-PCR, basado en SYBR Green-I para la detección del virus de influenza equina, puede ser usado en caso de una posible emergencia de este agente en Cuba.


INTRODUCTION

Equine influenza is a highly contagious respiratory disease in horses caused by influenza A viruses. Equine influenza virus belongs to the Orthomyxoviridae family and there are two different subtypes, H7N7 (formerly subtype 1) (1) and H3N8 (formerly subtype 2) (2). Characteristically, influenza spreads rapidly in a susceptible population. There have been very few reports worldwide regarding with the subtype H7N7 virus in the last 30 years; however outbreaks caused by H3N8 viruses occur annually (3). It is of paramount importance to have specific and sensitive virus detection systems available for a rapid diagnosis of equine influenza. Traditionally, the gold standard has been virus isolation from nasopharyngeal swabs using embryonated hen eggs. Other diagnostic tests employed include virus culture in Madin Darby canine kidney (MDCK) cells or measuring an increase in antibody titer in paired sera by the hemagglutination inhibition assay (4). These established techniques are time consuming and laborious. Furthermore, the sensitivity of virus isolation depends on the presence of infectious particles, and some virus strains are difficult to isolate (5). Serology provides only retrospective data which do not facilitate prompt intervention and appropriate case management. In recent years, enzyme-linked immunosorbent assays such as Directigen FluA (Becton Dickson) and RT-PCR have been introduced in some laboratories to provide more timely results (6,7).

Nowadays, rRT-PCR assays are increasingly used for the detection of the equine influenza virus genome; however most of these tests are designed on the basis of probes, which are expensives and very difficult to acquire for our country (8-11).

A useful alternative has been the SYBR Green-I based real-time assay, which has proven to be one of the most effective tools in the rapid and differential detection of a variety of viral pathogens (12-19). The Light Cycler PCR system from Roche Molecular Biochemicals allows the high-speed thermal cycling and quantitative RT-PCR (qRT-PCR) using SYBR Green-I, which is a cost efficient option.

In Cuba, equine influenza is an exotic disease. That is why it is very useful to have an rRT-PCR system suitable for detection of this viral agent at the Virology Laboratory at CENSA.

The purpose of this study was to standardize an rRT-PCR assay, based on SYBR Green-I coupled with melting curve analysis for the detection of equine influenza virus (gene M) and the typing of hemagglutinin gene.

MATERIALS AND METHODS

For rRT-PCR assay standardization, an RNA of equine influenza virus, gently donated by the Central Veterinary Laboratory of Algete Spain, was used as positive control.

The synthesis of cDNA was performed using random priming and M-MLV reverse transcriptase (Promega, Madison, WI, USA), as previously described by Díaz de Arce et al. (20).

The primers M+25 (5’-AGATGAGTCTTCTAACCGAGGTCG-3’) and M-124 (5’-TGCAAAAACATC TTCAAGTCTCTG-3’), designed by Spackman, 2002, were used to amplify a 99 bp amplicon from a conserved region in all type A influenza virus matrix genes (21).

A second set of primers was used for subtyping the hemagglutinin (HA) gene. A 373 bp region of this gene (nucleotides 566 to 938) was amplified using primer HA3F (5’-GAATGTGACAATGCCTAAC-3’) and primer HA3R (5’-GATGCTTCCATTTGGTGTA-3’).

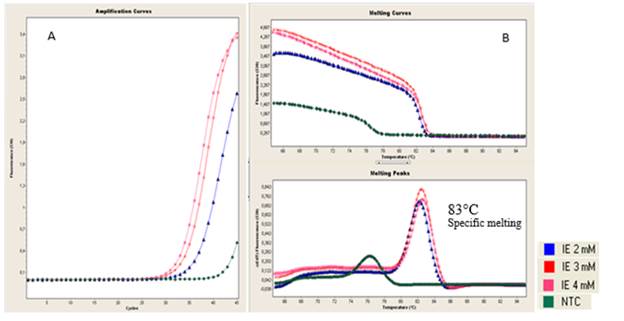

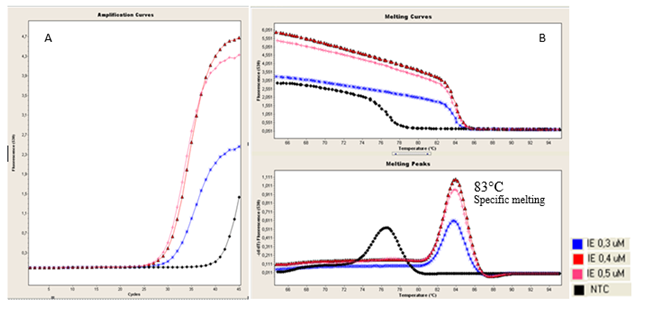

The rRT-PCR to detect the matrix gene was optimized and carried out using the SYBR Green Quantitative RT-PCR Kit (Roche Diagnostics, Manheim, Germany). Different concentrations of primers (0.3, 0.4, 0.5 μM) and MgCl2 (2.0, 3.0 y 4.0 mM) were evaluated.

All rRT-PCR reactions were performed in duplicate and conducted on the LightCycler 1.5 (Roche Diagnostics, Manheim, Germany) instrument. The following protocol was used: 10 min at 95°C, followed by 45 cycles at 95°C for 10 s, 55°C for 10 s and 72°C for 20 s. After PCR cycles, a DNA melting curve was generated (0 s at 95°C, 15 s at 65°C, with a ramping time of 20°C/s and 0 s at 95°C with a ramping time of 0.3°C/s), in order to discriminate between specific and nonspecific amplification products. In this study, the assay detection limit was determined by the efficacy of the entire method, including the sensitivity of the primers and the optimization of the procedure.

To determine the assay detection limit in terms of RNA copy numbers, an in vitro-transcribed RNA of the M gene targeted region was obtained. After reverse transcription, PCR was performed with the reverse primer coupled with a T7 promoter. The amplified products were checked by 2% agarose gel electrophoresis, stained with ethidium bromide (0.5 g/mL) and purified using Wizard® Genomic DNA Purification Kit (Promega, Madison, WI, E.U.A.), according to the manufacturer’s recommendations. The RT-PCR purified products were directly in vitro transcribed from the T7 polymerase promoter site using a MEGAscript® Kit (Ambion, Carlsbad, CA, E.U.A.), following the manufacturer’s recommendations. Briefly, the transcription reaction was performed using an RNA Polymerase Enzyme Mix, and a TURBO DNase treatment was carried out to remove the template DNA. Afterwards, the MEGAclear™ Kit was employed specifically for purifying RNA. Finally, the RNA transcript was quantified by spectrophotometry. Thus, a total of 4.5x1013 RNA copies/µl was obtained. Also, standard curves based on gene copy different numbers were generated, and reaction efficiencies were calculated by the LightCycler software (Version 4.05).

The assay detection limit in terms of RNA copy numbers was determined by testing sequential ten-fold dilutions of the in vitro transcribed RNA in nuclease-free water (Promega, Madison, USA). The assay specificity was tested on the RNA of equine viral arteritis, equine herpesvirus-1 and equine herpesvirus-4. Each strain used was tested in triplicate.

A second independent rRT-PCR protocol was carried out with HA gene primers. rRT-PCR conditions used with the second set of primers were the same as those used with the matrix primers.

RESULTS AND DISCUSSION

Finally, 3.0 mM and 0.4μM concentrations of MgCl2 and primers were established and used in further experiments. The final PCR mixture contained 0.8 μl each of forward and reverse primers (final concentration of each, 0.4 μM), 2 μl of Fast Start DNA Master SYBR Green-I, 1.6 μl of MgCl2 (final concentration 3.0 mM), 5 μl of template, and made up to 15 μl with nuclease free water. The optimal alignment temperature was 55oC (Figure 1 and 2).

In terms of the matrix gene copy number, the detection limit was 4.5 gene copies/μl of in vitro transcribed RNA.

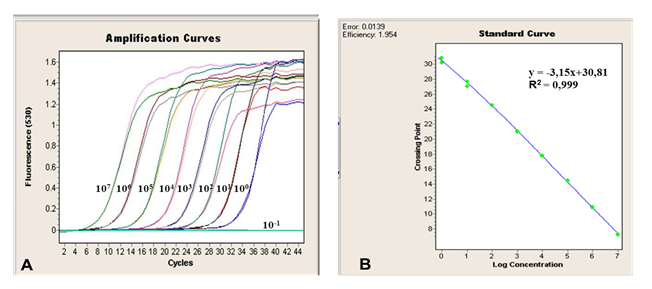

To determine the linearity of the reaction and the PCR efficiency, the threshold cycle values of individual dilutions were plotted against the gene copy number. The linear range obtained for the transcript in the assay generated a typical standard curve from 107 until 100 gene copies/µl in terms of RNA copy number (Figure 3 A). The correlation coefficient (R2) was 0.99 for the RNA gene copies detected in nuclease free water. The error of standard curve was 0.0139, which is in the acceptance range for this type of test (less or equal to 0.02) (Figure 3 B).

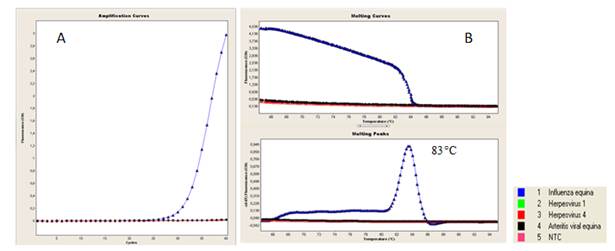

The rRT-PCR assay showed to be specific for the equine influenza virus. Amplification specificity was carried out by the melting curve analysis of the amplified products in rRT-PCR assay. The specific amplifications of equine influenza virus were also confirmed by the detection of a band of 99 bp by agarose gel electrophoresis (data not shown). No specific amplification curves were obtained with any of the other viruses tested such as equine viral arteritis, equine herpesvirus-1 and equine herpesvirus-4 (Figure 4).

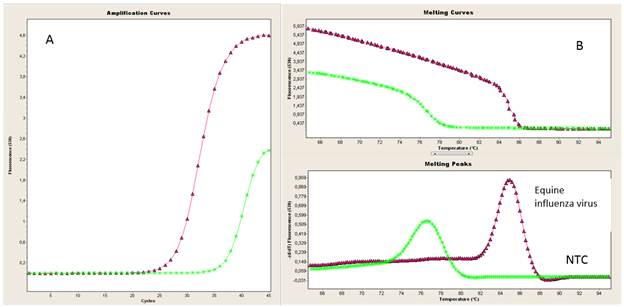

The SYBR Green-I based real time RT-PCR assay showed specific amplification and melting curves when the second set of primers against HA gene was evaluated (Figure 5).

The major challenge faced by equine veterinarians when confronted with a case of respiratory tract infection is to determine the contagious nature of the disease in order to properly manage the affected animal and to reduce the risk of exposure to other horses. This requires the availability of fast and reliable diagnostic tests.

The real-time technology provides highly sensitive, specific as well as rapid detection and quantification of viral genomes and should be carried out with a low contamination risk at a reasonable cost (22,23). Nowadays, RT-PCR in real-time assays is increasingly used for the detection of equine influenza virus in nasal secretions (24). Different assays based on this tecnology using TaqMan probes have been documented in the OIE Manual (8,9). Nevertheless, the rRT-PCR assays based on SYBR Green are potentially less influenced by mismatches because they are not influenced by sequence variation in the probe target region; they have relative simplicity and the cost of SYBR Green-I is lower compared to probes (25).

The proposed SYBR Green-I based real-time RT-PCR assay coupled with melting curve analysis provides a reliable, fast, sensitive, and specific method for the detection of equine influenza virus, althought it must be evaluated in clinical samples. It can be used in the case of a possible emergency of this agent in Cuba.

REFERENCES

1

1. Sovinova´O, Tu¨mova´B, Pouska F, Nemec J. Isolation of a virus causing respiratory disease in horses. Acta Virol. 1958;2:52-61.

2

2. Wadell GH, Teigland MB, Siegel MM. A new in?uenza virus associated with equine respiratory disease. J Am Vet Med Assoc. 1963;143:587-590.

3

3. Webster RG. Are equine 1 influenza viruses still present in horses? Equine Vet J. 1993;25: 537-538.

4

4. Office International des Epizooties. Equine influenza. Manual of standards for diagnostic tests and vaccines. Office International des Epizooties, Paris, France. 2000:546-557.

5

5. Office International des Epizooties. Conclusions and recommendations from the consultation meeting of OIE and W.H.O. experts on equine influenza, Newmarket, United Kingdom, 18-19 September 1995. Office Int. Epizoot. Bull. 1996;108:482-484

6

6. Morley PS, Bogdan JR, Townsend HG, Haines DM. Evaluation of Directigen Flu A assay for detection of influenza antigen in nasal secretions of horses. Equine Vet J. 1995;27:131-134.

7

7. Quinlivan MA, Cullinane M, Nelly K, Van Maanen, Heldens J, Arkins S. Comparison of sensitivities of virus isolation, antigen detection,and nucleic acid amplification for detection of equine influenza virus. J Clin Microbiol. 2004;42:759-763.

8

8. Foord AJ, Selleck P, Colling A, Klippel J, Middleton D, Heine H. Real-time RT-PCR for detection of equine influenza and evaluation using samples from horses infected with a/equine/sydney/2007 (h3n8). Vet Microbiol. 2009;137:1-9.

9

9. Lu Z, Chambers TM, Boliar S, Branscum AJ, Sturgill TL, Timoney PJ,et al. Development and evaluation of one-step taqman real-time reverse transcription-PCR assays targeting nucleoprotein, matrix and hemagglutinin genes of equine influenza virus. J Clin Microbiol. 2009;47:3907-3913.

10

10. Aeschbacher S, Santschi E, Gerber V, Stalder HP, Zanoni RG. Development of a real-time RT-PCR for detection of equine influenza virus. Schweiz Arch Tierheilkd. 2015;157(4):191-201.

11

11. Balasuriya Udeni BR, Lee Pei-Yu, Tiwari A, Skillman A, Nam B, Chambers TM, et al. Rapid detection of equine influenza virus H3N8 subtype by insulatedisothermal RT-PCR (iiRT-PCR) assay using the POCKITTMNucleic Acid Analyzer. J Virol Methods. 2014;207:66-72.

12

12. Rios L, Perera CL, Coronado L, Relova D, Álvarez AM, Ganges L, Díaz de Arce H, Núñez JI, Pérez LJ. Strategy for Pan/Foot-and-Mouth Disease Virus (FMDV) Detection: A Combination of Sequences Analysis, in Silico Predictions and Laboratory Diagnostic Evaluation. Front Vet Sci. 2018;5:1-13.

13

13. Chen J, Zhao Z, Chen Y, Zhang J, Yan L, Zheng X, et al. Development and application of a SYBR green real-time PCR for detection of the emerging avian leukosis virus subgroup K. Poult Sci. 2018;97(7):2568-2574.

14

14. Chen GH, Tang XY, Sun Y, Zhou L, Li D, Bai Y, et al. Development of a SYBR Green-based real-time quantitative PCR assay to detect PCV3 in pigs. J Virol Methods. 2018;251:129-132.

15

15. Zhu Z, Fan H, Qi X, Qi Y, Shi Z, Wang H,et al. Development and evaluation of a SYBR Green-based real time RT-PCR assay for detection of the emerging avian influenza A (H7N9) virus. PLoS One. 2013;8(11):e80028.

16

16. Acevedo AM, Perera CL, Vega A, Ríos L, Coronado L, Relova D, et al. A duplex SYBR Green I-based real-time RT-PCR assay for the simultaneous detection and differentiation of Massachusetts and non-Massachusetts serotypes of infectious bronchitis virus. Mol Cell Probe. 2013;27:184-192.

17

17. Prieto A, Díaz-Cao JM, Fernández AR, Panadero R, Díaz P, López C, et al. (2014). Application of real-time PCR to detect Aleutian Mink Disease Virus on environmental farm sources. Vet Microbiol. 173;355-359.

18

18. Yang Y, Qin X, Zhang W, Li Y, Zhang Z. Rapid and specific detection of porcine parvovirus by isothermal recombinase polymerase amplification assays. Mol Cell Probe. 2016;30:300-305.

19

19. Wang J, Liu L, Li R, Wang J, Fu Q, Yuan W. Rapid and sensitive detection of canine parvovirus type 2 by recombinase polymerase amplification. Arch. Virol. 2016;161:1015-1018.

20

20. Díaz de Arce H, Pérez LJ, Frías MT, Rosell R, Tarradas J, Núñez JI, et al. A multiplex RT-PCR assay for the rapid and differential diagnosis of classical swine fever and other pestivirus infections. Vet Microbiol. 2009;139:245-252.

21

21. Spackman E, Senne DA, Myers TJ, Bulaga LL, Garber LP, Perdue ML, et al. Development of a real-time reverse transcriptase PCR assay for type A influenza virus and the avian H5 and H7 haemagglutinin subtypes. J Clin Microbiol. 2002;40:3256-3260.

22

22. Navarro E, Serrano-Heras G, Castaño MJ, Solera J. Real-time PCR detection chemistry. Clin Chim Acta. 2015;439:231-250.

23

23. Wernike K, Beer M, Hoffmann B. Rapid detection of foot-and-mouth disease virus, influenza A virus and classical swine fever virus by high-speed real-time RT-PCR. J Virol Methods. 2013;193(1):50-54.

24

24. Quinlivan M, Dempsey E, Ryan F, Arkins S, Cullinane A. Real-time reverse transcription PCR for detection and quantitative analysis of equine influenza virus. J Clin Microbiol. 2005;43: 5055-5057.

25

25. Website http://www.qiagen.com. Application Note. Comparing SYBR(r) Green- and probe-based detection in real-time PCR. QIAGEN. 2017.










The authors of this work declare no conflict of interest.
